CentOS6怎么样配置ADSL上网
作者:pe系统 2015-03-23
CentOS6怎么样配置ADSL上网请看以下教程:
起首安装好CentOS6往后要安装rp-pppoe这个软件,centos之前的版本所adsl-setup这个呼吁安装,到centos6改了。
必要光驱内放好CentOS安装盘
挂载光盘
#mount /dev/cdrom /media
找出文件路径
# find /media -name 'rp-pppoe*'
这个文件没有依靠项,可以直接安装
#rpm -ivh /media/CentOS_6.0_Final/Packages/rp-pppoe-3.10-8.el6.i686.rpm
安装好往后可以开始配置ADSL和DNS信息
#pppoe-setup
Welcome to the PPPoE client setup. First, I will run some checks on
your system to make sure the PPPoE client is installed properly...
The following DSL config was found on your system:
Device: Name:
ppp0 DSLppp0
Please enter the device if you want to configure the present DSL config
(default ppp0) or enter 'n' if you want to create a new one: ppp0
LOGIN NAME
Enter your Login Name (default root): 中国电信可能网通给你的ADSL用户名,留意电信给的有ad打头
INTERFACE
Enter the Ethernet interface connected to the PPPoE modem
For Solaris, this is likely to be something like /dev/hme0.
For Linux, it will be ethX, where 'X' is a number.
(default eth0): eth0← 指定收集接入装备,一块网卡的环境下,一样平常为默认eth0
Do you want the link to come up on demand, or stay up continuously?
If you want it to come up on demand, enter the idle time in seconds
after which the link should be dropped. If you want the link to
stay up permanently, enter 'no' (two letters, lower-case.)
NOTE: Demand-activated links do not interact well with dynamic IP
addresses. You may have some problems with demand-activated links.
Enter the demand value (default no): ← 直接按回车,接管默认配置,扣问的是,adsl毗连往后,是否一连保持毗连。大附崆自动的断开,在指定的时刻(以秒数计较)内。大都环境下,我们但愿手动的打开封锁毗连。以是这里选择默认的no。
DNS
Please enter the IP address of your ISP's primary DNS server.
If your ISP claims that 'the server will provide dynamic DNS addresses',
enter 'server' (all lower-case) here.
If you just press enter, I will assume you know what you are
doing and not modify your DNS setup.
Enter the DNS information here: 202.96.209.5 第一个DNS提议手动配置,否则也许连不上
Please enter the IP address of your ISP's secondary DNS server.
If you just press enter, I will assume there is only one DNS server.
Enter the secondary DNS server address here: 202.96.209.133 第二个DNS提议手动配置,否则也许连不上
PASSWORD
Please enter your Password: 输入ADSL的毗连暗码
Please re-enter your Password: ← 再次确认输入ADSL的毗连暗码
USERCTRL
Please enter 'yes' (three letters, lower-case.) if you want to allow
normal user to start or stop DSL connection (default yes): yes← 填入no,不应承一样平常用户节制PPPoE的毗连
FIREWALLING
Please choose the firewall rules to use. Note that these rules are
very basic. You are strongly encouraged to use a more sophisticated
firewall setup; however, these will provide basic security. If you
are running any servers on your machine, you must choose 'NONE' and
set up firewalling yourself. Otherwise, the firewall rules will deny
access to all standard servers like Web, e-mail, ftp, etc. If you
are using SSH, the rules will block outgoing SSH connections which
allocate a privileged source port.
The firewall choices are:
0 - NONE: This script will not set any firewall rules. You are responsible
for ensuring the security of your machine. You are STRONGLY
recommended to use some kind of firewall rules.
1 - STANDALONE: Appropriate for a basic stand-alone web-surfing workstation
2 - MASQUERADE: Appropriate for a machine acting as an Internet gateway
for a LAN
Choose a type of firewall (0-2): 0← 输入0,不在这里行使防火墙
Start this connection at boot time
Do you want to start this connection at boot time?
Please enter no or yes (default no):yes← 填入yes,在体系启动时自动毗连ADSL

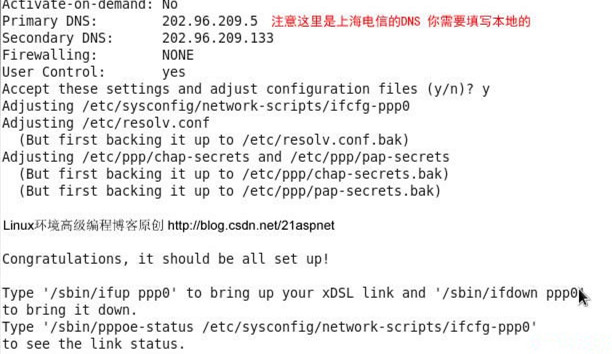

Accept these settings and adjust configuration files (y/n)? y← 设置信息确认无误后,键入y赞成配置
** Summary of what you entered **
Ethernet Interface:eth0
User name:
[root@localhost ~]# pppoe-start← 启动ADSL pppoe毗连
[root@localhost ~]# pppoe-status 配置完成后我们看看adsl状态
